Product Highlights

■ Offset printing and flexo printingcan interchangeably.
■ Adopt automatic register system.
■ It can achieve the combined printingtechnology which included offset printing,flexo printing, silk screen,cold foil stamping, etc.
■ Suitable for label and soft package industry.

Features

■ Inline combined printing technology which included offset printing, flexo printing, silk screen, cold foil stamping, lamination and etc. Each function can combined by different printing requirement to achieve all kinds of label printing.
■ Large printing area is 410*635, the max printing perimeter can reach 635mm, the max speed can reach 150/meter/minute.
■ It's the most suitable printing solution for big quantity order and big label.
■ The range of printing material widely, inlude paper, sticker, OPP, Bopp, pvc, foil, the thickness of substrate from 0.04mm(film)-0.35mm(cardboard).

Use

■ Smart-420 suitable for several substrate material include sticker, card board, foil, film, etc.
■ It adopt inline modular combination method, can print from 4-12 color.
■ Every printing unit can achive one of the printing type include offset, flexo, silk screen, cold foil.
■ Adopt servo motor control, automatic register system and pre-register system to guarantee steady register in high speed state (150/meter/minute).
■ Second pass sensor and turn bar function are optional.
■ Smart-420 is an ideal printing machine for all kinds of middle-high quality daily-use chemical, wine label, medicine label, packaging and sticker.

Servo Driver Control

■ From unwinding, printing, diecutting to rewinding, Smart-420 adopt servo driver technology to get more accurate tension and register control.
■ Printing tension using closed-loop tension control system which adopt independent servo driver.

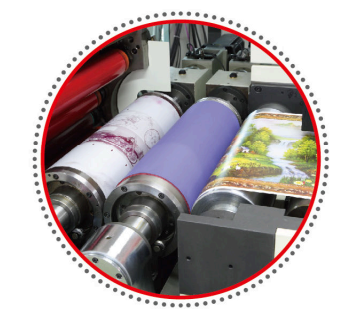

■ Offset printing cylinder, blanket cylinder, impression cylinder, ink route and water route all use servo driver control to guarantee steady printing, high printing register and perfect printing quality.

Automatic Register System

The register accuracy is 0.05mm, and can be automatic adjusted in axial and radial at the same time.

Identifies register error automatically and corrects from time to time to guarantee steady register.

Pre-register System

The printing cylinder will reach to the register zero point automatically after installing the printing plate and start work, it can achieve good register requirement without manual control which improves the working efficiency and save lots of material & labor cost.

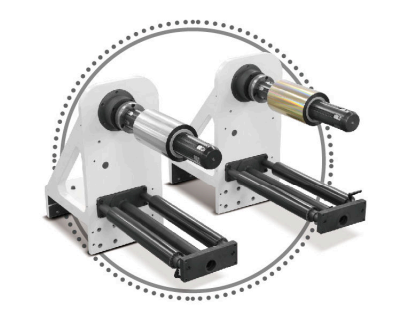

Portable Roller Technology

Using magnalium printing cylinder and blanket cylinder, with double-pinch clamping technology for easily changing printing area and printing method, convenience operator and low maintenance cost.

Center Control Screen

The machine parameters can be adjusted at any time by digital handles and the work order data produced each time can be stored and recalled, which also contain the machine's best state during the printing time.

It can achieve the control to the whole machine, not only the basic operation of turning on, turning off, speed adjustment, counting and so on, but also including automatic offset ink & water control, register control and timely quality inspection.

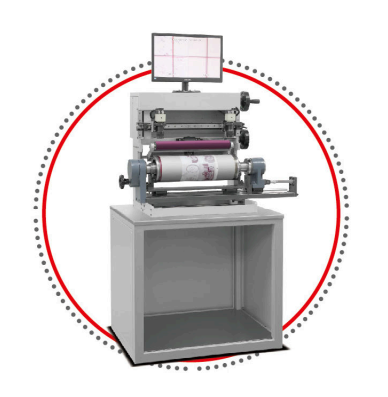

Dedicated Plate Installation Platform

Using CCD camera calibration system to make printing plate installation convenient and reliable.

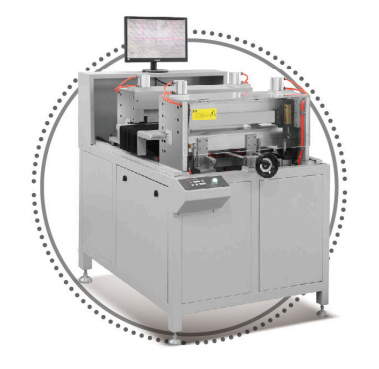

Dedicated Plate Bending Table

Using CCD camera calibration system to break out the reasonable angle for easily plate mounting.

Removable Cold Foil Unit

According to the different printing requirement, cold foil unit can move to any position to complete the job.
